| Place of Origin: | TAIZHOU-CHINA |
| Brand Name: | WINNER |
| Certification: | IATF16949 |
| Minimum Order Quantity: | 5000 |
|---|---|
| Price: | CNY+100-400+YUAN |
| Packaging Details: | According to customer’s requirement |
| Delivery Time: | 5-8 workdays |
| Payment Terms: | T/T, MoneyGram |
| Supply Ability: | 1200+SET+DAY |
| MODULUS: | 8.5 | NUMBER OF TEETH: | 11 |
|---|---|---|---|
| TOOTH DEPTH: | 4.65 | MATERIAL: | 20CrMnTiH/21NiCrMo5H |
| MATERIALS: | Low Carbon Alloy Steel | APPLICATION: | P Mode In The Car |
| PRODUCT DESCRIPTION: | Parking Gear | GEAR TYPE: | Parking Tooth+involute Internal Spline |

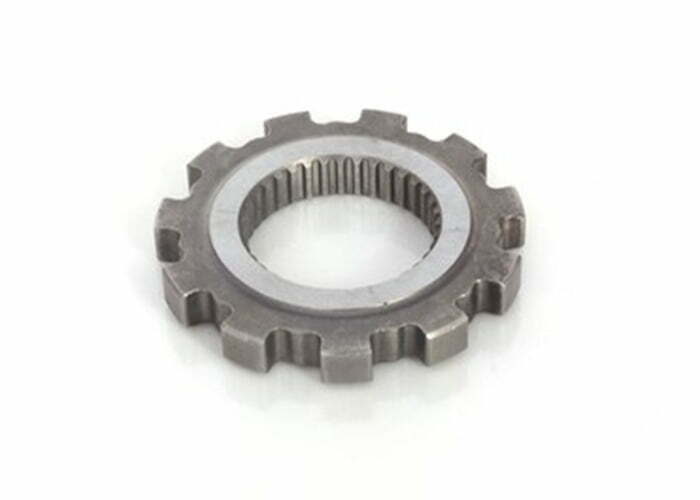

HIGH LIGHT: M 8.5 Parking Gear, 62HRC Parking Gear, IATF16949 mechanical gear ring
The parking tooth with module 8.5 has a width of 11, This product is made of low carbon alloy steel. Generally, alloy steel is called alloy steel by adding other alloying elements in addition to iron and carbon. An iron carbon alloy formed by adding one or more alloying elements on the basis of ordinary carbon steel.
The transformation of austenite to pearlite will be significantly delayed if the carbide-forming elements (such as vanadium, titanium, chromium, molybdenum and tungsten) are more abundant, but the transformation of austenite to bainite will not be significantly delayed. Therefore, the isothermal transformation curves of these two transformations will be separated from the “nose” and two C-shapes will be formed.
When these elements increase to a certain extent, a substable zone of supercooled austenite will appear between the two transition regions.
| modulus | 6.1-8.7 |
| number of teeth | 8-11 |
| tooth depth | 4.25-5.15 |
| tooth width | 8-19 |
| weight | 0.153KG-0.261KG |
| material | 20CrMnTiH/21NiCrMo5H |
| appearance | circle |
| gear surface hardness | 58-62HRC |
| tooth line shape | involute |
| application | P mode in the car |
| product description: | parking gear |
| accuracy of gear | 7-10 |
| processing module | 1-9 |
| gear type | parking tooth+involute internal spline |
| materials | low carbon alloy steel |
| surface treatment | carburizing and quenching |
| processing technic | forging+machine work+heat treatment |
| fabricating machinery | mechanical press+CNC Lathe |
| checkout equipment | Klingberg Gear Btesting Center |
| gear ring |
| involute gear |
| gear tooth profile |
| involute teeth |
| mechanical gear ring |
| involute gear teeth |
| involute tooth |
| involute tooth profile |
| involute gear profile |
| involute gear tooth |
| transmission ring |
Q:What are your packing terms?
A: Generally speaking, we will pack properly according to your requirements.
Q:What are your terms of payment?
A:generally speaking, telegraphic transfer 30% serves as deposit, 70% is before deliver, but specific circumstance, want to seek advice from our business branch, according to different actual situation, differ somewhat.
Q: What are your company’s main products?
A: Automotive precision forging products.
